Featured project Samosorn Thai Local Food Hall

Shop LP27 Level 2 Sydney Central Plaza Sydney NSW 2000

The project consisted of

1- Stainless Steel kitchen exhaust hood (5400 x 1100 x 750 h ) to be manufactured in two hoods and also installed with heat proof lights.

1- Stainless steel kitchen exhaust hood (2720 x 1100 x 750 h ) with heat resistant lights

1- Stainless steel dishwasher hood ( 1000 x 1000 x 450 h)

The mechanical ventilation design and installation consisted of kitchen exhaust fan and ventilation ducting.

The project began with the design of the mechanical ventilation system after it was passed the installation began. The kitchen exhaust hoods were made in two (5400 x 1100 x 750 h) these were installed followed by a stainless steel island exhaust hood the size was (2720 x 1110 x 750 h) and then the dishwasher hood was lasted to be installed which was located at the back of the commercial kitchen area. On the mechanical ventilation design the kitchen exhaust system include kitchen ducting and a kitchen exhaust fan the mechanical engineer designed the system to have low dba which meant the ducting and kitchen exhaust fan had little noise through the ventilation system. The amount of airflow was achieved through a 3 phase booster fan and the ducting being insulated which meant little noise at kitchen level and in the end was a very pleasing outcome for this project.

Samosorn Thai

Samosorn Thai

Dining Area

Dining Area

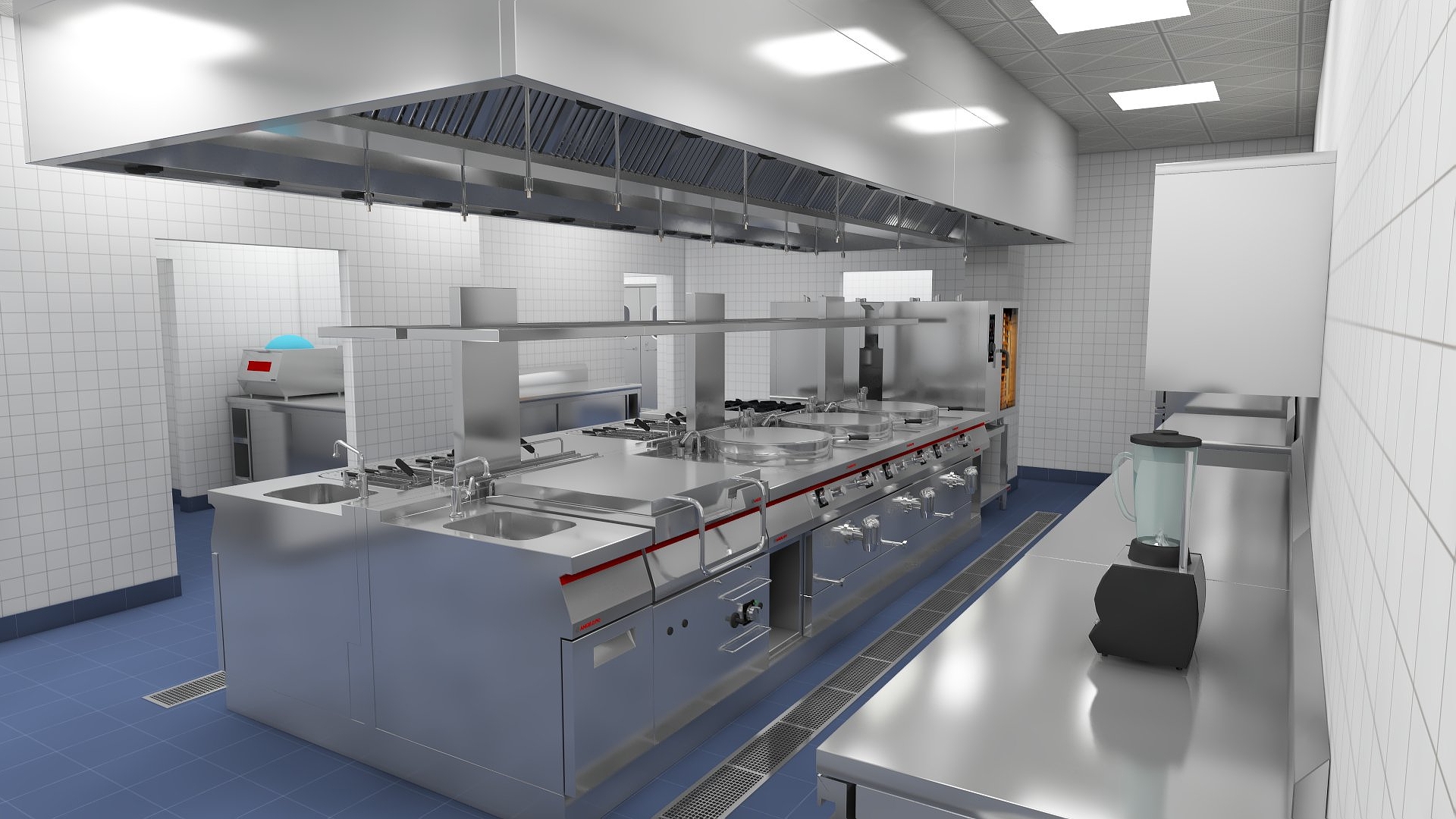

Commercial kitchen area

Commercial kitchen area

Featured Project San Ma Restaurant

465 Victoria Ave Chatswood NSW 2067

san ma ru restaturant

The job consisted of

1- Stainless Steel Kitchen Exhaust Hood (3500 x 1100 x 750 h)

1- Kitchen Exhaust Dishwasher Hood (1000 x 1000 x 750 h)

2- Kitchen exhaust fans

1- RY5000 Electrostatic air cleaner from Air & Odour Solutions Australia

1- RY2500 Electrostatic air cleaner from Air & Odour Solutions Australia

The mechanical ventilation system has been designed and and will be installed accordance to the Australia system AS 1668 parts 1 & 2 complies with J5 of the BCA standards

The project also consisted of toilet exhaust system and make up air system and a air-conditioning system.

At the first stage of the project JC Ventilation was responsible for the design of the mechanical services of the project and later were required for installation of the project.

At the commencement of the project involved the installation of the stainless steel kitchen exhaust hood (3500 x 1100 x 750 h) and make up air was implemented in the face of the hood and dishwasher exhaust hood (1000 x 1000 x 750 h) was also installed in the kitchen area on the ground level of the restaurant. The restaurant consisted of two levels and the mechanical services was designed and installed on the second level. This also meant 2 electrostatic air cleaners were also used to implement clean exhaust air and another reason the restaurant was using charcoal cooking application and also a major factor the roof level was at low level.A Temperzone unit 44.5 kw air-conditioning unit was used to control the dining area.

The end result was the client was very happy and satisfied with the project.

Kitchen exhaust hood with make up air at the face of the hood.

Kitchen exhaust hood with make up air at the face of the hood.

Electrostatic Air Cleaner RY 2500 from Air & Odour Solutions

Electrostatic Air Cleaner RY 2500 from Air & Odour Solutions

Air-conditioning ducting with flexible connected

Air-conditioning ducting with flexible connected

Kitchen exhaust fan and kitchen exhaust ducting

Kitchen exhaust fan and kitchen exhaust ducting

Air-conditioning grills located on the wall

Air-conditioning grills located on the wall

Featured project Fogo Brazilia Central Park

RB 11 Lower Ground, The dining district Central park Sydney 2000

Untitled 4

Fogo Brazilia has opened up a new restaurant in Central Park. Fogo Brazilia is a Brazilian twist on what you love to eat.

The project consisted of

- JC Ventilation mechanical design drawings and consultation of both the air conditioning system and mechanical ventilation system

- Temperzone unit MD420 to supply and install one air conditioning system and connect into the building chilled water system.

- Supply and install 1 make up air system consisting of all ducting to run from the front of the shop into a filter box and 1 make up air fan connecting to the hood system.

- Supply and install 1 stainless stell kitchen exhaust hood (5500 x 1300 x 900) which will be made in two hoods and stainless steel grease filters to be supplied.

- Kitchen exhaust ducting and kitchen exhaust fan to be supplied and installed and as well as access panels and dampers.

The first stage of the project began by a mechanical drawing which had to be submitted implemented in the design was a mechanical ventilation system, chilled water air conditioning system and make up air system.

At JC Ventilation the mechanical engineers implemented a chilled water system for the air conditioning system. Water chillers are used in a variety of air conditioning process cooling applications. They cool the water by pumps and pipes and the water passes through the coil tubes of coil to cool air in a air conditioning system. Water cooled chillers are more energy efficient that’s why this system was chosen by JC Ventilation. And the air conditioning system included 4 0ff 400 diameter jet diffuser were installed at the face of the bulkhead and at the opposite side of the restaurant 2 linear diffuser (1200 x 150) were installed at the face of the bulkhead.

The mechanical ventilation included make up being drawn out the face of the kitchen exhaust hood. Spigot connection was installed at the top of kitchen exhaust hood for make up air flexible connection. And also a plenum kitchen exhaust ducting was installed at the top of the kitchen exhaust hood so that the exhausted air can be evenly distributed across the kitchen exhaust hood. Volume control dampers were installed as well as access panels implemented into the kitchen exhaust system. In the ventilation design included 1 kitchen exhaust fan which was a backward curve centrifugal type and then the kitchen exhaust ducting connected into the main system.

The difficult part of this project was the heights associated when the tradesmen for JC Ventilation had to install the mechanical services they had to work off scaffolds and scissor lifts but overall it was a well implemented mechanical design project which made the project more easier to complete and more successful.

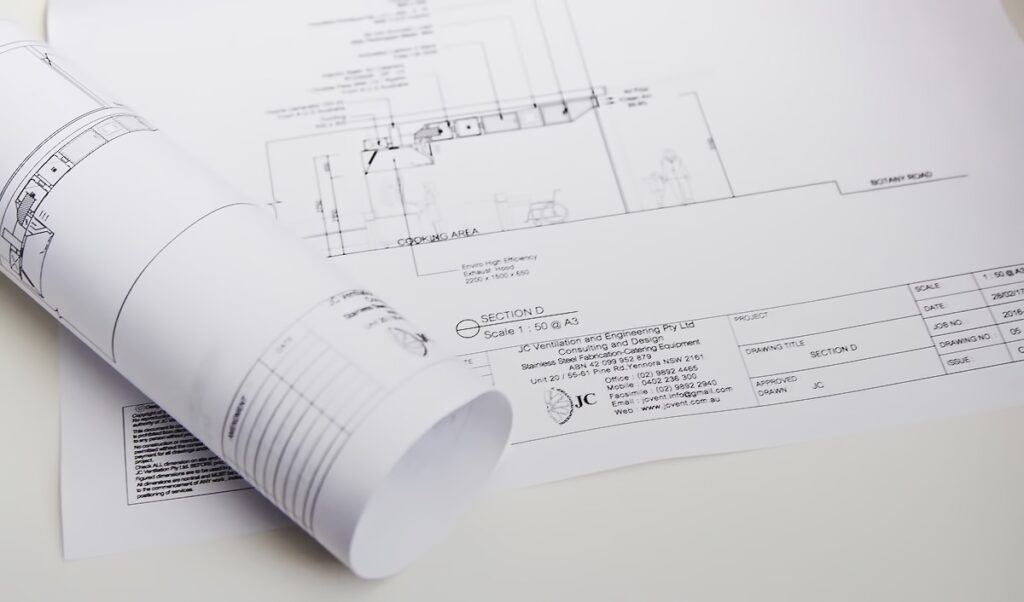

Mechanical drawing design for Fogo Brazilia

Mechanical drawing design for Fogo Brazilia

Featured project Fogo Brazilia

Featured project Fogo Brazilia

Featured project Swaab Attorney

Level 1, 20 Hunter Street Sydney NSW 2000

49292-s-1349245241

Swaab attorney is a law firm located in the heart of the sydney’s CBD. A major office refurbishment was required. JC Ventilation was needed to complete the commercial air conditioning part of the project but once finished client was very pleased with the outcome of the project.

This project consisted to allow the disconnection and make safe all mechanical services and supply registers in the ceiling space and the suspended ceiling grid. Also allow to undertake modifications to the existing mechanical services to suit the new layout and all detailed on the mechanical services documentation and allow to adjust and relocate the existing sensors and controls as required as documentated and supply 2 new water cooled units to the existing condensers or water reticulation pipework. Also the project adjusting the VAV unit ductwork and register to suit the new layout and detailed to the lift to lobby and tenancy A and supply and install new ductwork and registers to entertainment area and boardroom and kitchen and dining areas.

Swaab attorney mechanical services drawing

Swaab attorney mechanical services drawing

Swaab Attorney at the start of the project

Swaab Attorney at the start of the project

Supply registers for the commercial air conditioning located inside the bulkhead

Supply registers for the commercial air conditioning located inside the bulkhead

Supply register for the commercial air conditioning located in the ceiling space situated in the entertainment area

Supply register for the commercial air conditioning located in the ceiling space situated in the entertainment area
